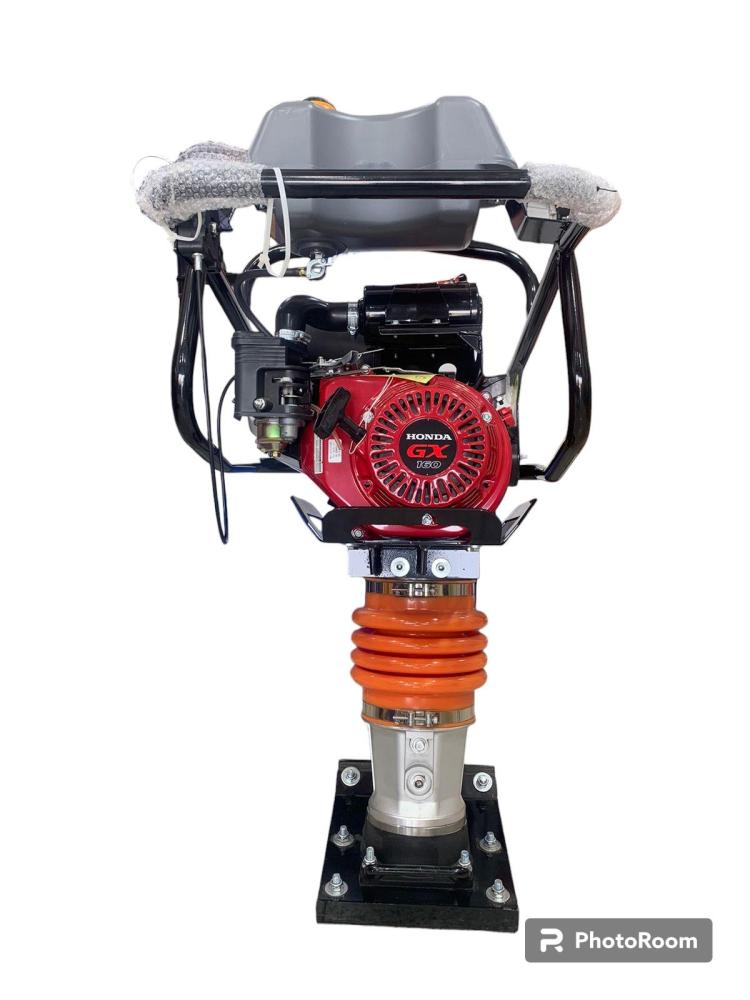

Technical Specifications:

• Engine type: HONDA GX160
• Motor power: from 3 HP to 6.5 HP
• Impact Force: 10,000 Newtons (N)
• Revolutions per minute (RPM): 450–650 rpm
• Jump stroke length: 40–65 mm
• Forward Speed: 10–13 m/min (mm/min is usually written but the correct form is m/min)
• Bottom plate size: 340 x 285 mm
• Operating Weight: 78 kg
• Shipping weight (Gross / Load Weight): 88 kg
• Package Size: 785 x 485 x 1140 mm
• Robust design suitable for heavy compaction work on construction sites
• Consistent performance with the ability to withstand continuous work
